EZZO system window and door range for Singapore — casement, sliding, folding, American and electric-lift windows; heavy sliding, folding, flat and pivot doors. Profile widths from 65 mm to 190 mm with PA66 nylon thermal break, EMD/CMECH hardware and tempered insulated glass.
Frame widths and glass build-ups below are taken from the EZZO 2026 catalogue. Final sizes are confirmed against opening dimensions and wind-load calculations on each project.

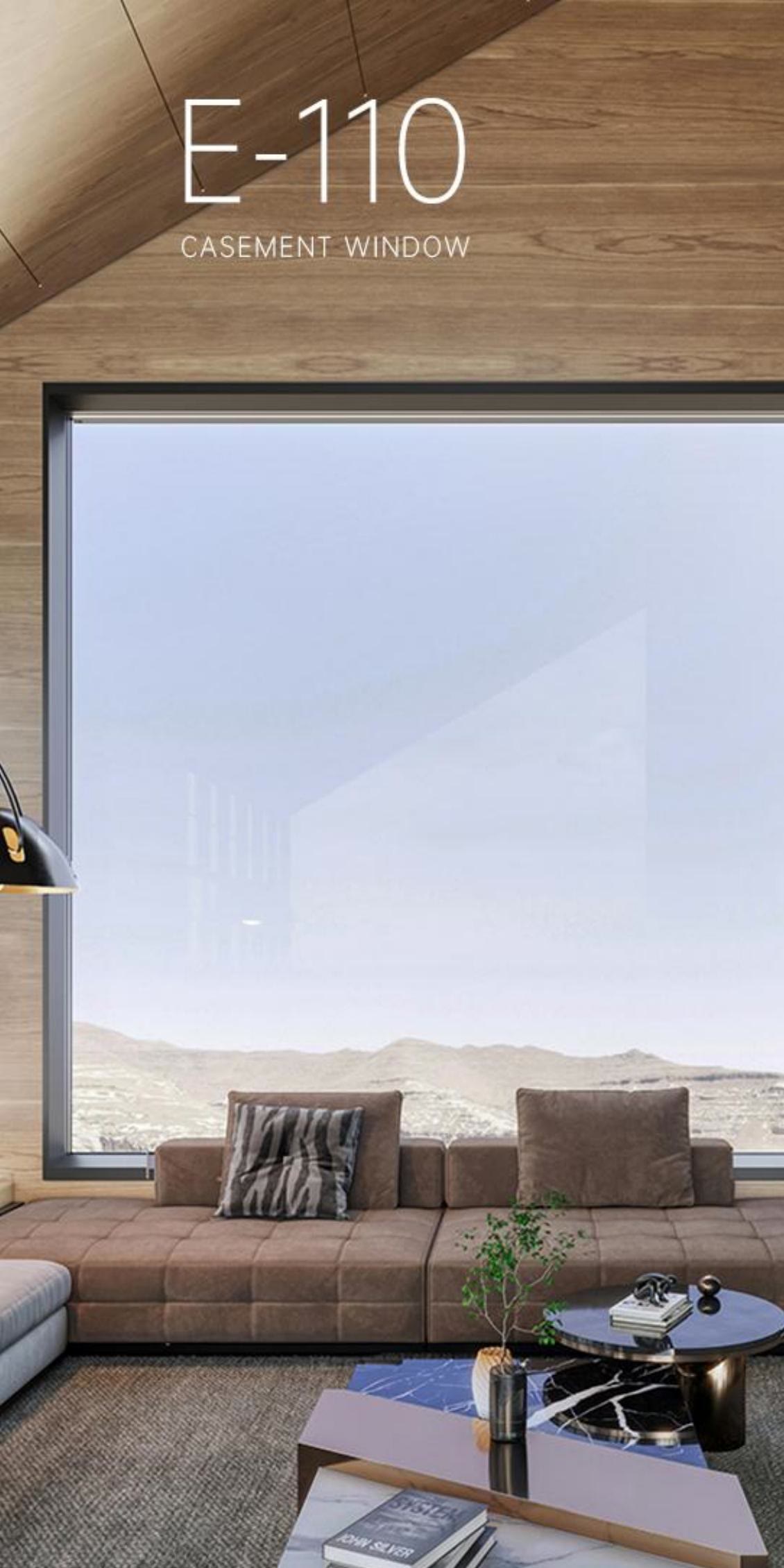

Casement Window
110 mm, 90 mm and 120 mm casement profiles. Outward swing, inward swing or tilt-and-turn. PA66 thermal break, 5+20A+5 or triple-glazed (5+12A+5+12A+5) IGU options. CMECH hardware standard.
Sliding Window
Push-and-pull aluminium sliding windows. 112 mm slim track, 123 broken-bridge suspension and 130 side-press configurations. 5+12A+5 to 5+20A+5 IGU with high-definition screen mesh.
Folding Window
Bi-fold aluminium windows for full-aperture openings — patio servery, lanai or balcony. Multi-leaf with co-ordinated rollers and reinforced sash for tempered glass loads.
American Window
Top-hung and double-hung American window configurations. 50 mm, 70 mm and 83 mm aluminium profiles with balanced sash hardware and integrated insect mesh.
Electric-Lift Window
Motorised vertical-lift window for kitchen counters and full-height openings. Encoder-driven for accurate position; remote, switch or app-control options.
Heavy Sliding Door
Heavy sliding aluminium door range. TY150 lift-and-slide for panels up to 3,000 mm high; E190 multi-track for openings up to 6,000 mm wide. PA66 thermal break and EMD hardware.
Folding Door
Aluminium folding/bi-fold door range, profile widths 65–80 mm. KS bottom guide rail for smooth tracking. Up to 6 panels per run, panel heights to 3,000 mm.
Flat & Pivot Door
120 mm flush-flat door for zero-reveal walls; PT pivot entrance door with off-centre pivot, panel heights to 3,200 mm. Floor-spring and louvre configurations also covered.
Interior Doors
Single-glazed sliding and flat interior aluminium doors, central-shaft and French door options. Suited to bathroom, kitchen, study and wardrobe partitioning.
| Attribute | Specification |
|---|---|
| Profile alloy | National Standard 6063-T5 aluminium |
| Thermal barrier | PA66 nylon thermal break |
| Hardware | CMECH or EMD system |
| Glass | 5+12A+5 / 5+20A+5 tempered insulated glass; Low-E, coated, tinted or smart glass on request |
| Screen mesh | 0.45 high-definition mesh or folding mesh |
| Shading | Glass blinds or windproof roller blinds |
| Performance attributes | Wind pressure resistance · water tightness · sound insulation · airtight property · energy saving · mechanical strength · guard against theft |
