EZZO Collection

System Door
Series

A complete range of architectural aluminium system doors — from grand heavy-duty sliding walls and space-saving folding partitions to clean-profile flat doors, versatile PT screen doors, and refined interior glazing. Every model is engineered from 6063-T5 aluminium alloy with PA66 nylon thermal break insulation, precision precision KERSSENBERG hardware, and a choice of LOW-E, coated, smart, or tinted insulated glass.

12+
Door Models
7m
Max Door Height
11
Standard Colours
PA66
Thermal Break

Heavy Sliding Doors

Precision-Engineered Sliding Systems

Three heavy-duty sliding door platforms designed for Singapore's climate — flush-track options, multi-point locking, windproof shading, and EZZO carriage systems rated for repeated daily operation across large-span openings.

Heavy sliding door system installed in a residential project, showcasing minimal frame profile and large glass panels
EZZO Hardware System

Engineered by EZZO — Installed Worldwide

EZZO's heavy sliding door series uses the EZZO carriage and locking hardware developed by EZZO — one of China's leading aluminium door and window manufacturers with installations across Southeast Asia, Australia, Europe, and North America. The same engineering that equips luxury residences worldwide is specified as standard on every EZZO project.

Image: Heavy sliding door product reference — EZZO

Technical Drawings
Sliding Door Cross-Sections — TY150 & E127/E190
Technical cross-section drawings for TY150 and E127/E190 heavy sliding doors showing profile dimensions, frame width, thermal break, and glass configuration

Official technical cross-section drawings for the TY150 (5.0mm profile, 150mm frame, max 7m height) and E127/E190 (4.0mm profile, 127/190mm frame) sliding door platforms. Both models feature PA66 Nylon Thermal Break and 5mm+20A/27A+5mm tempered insulated glazing.

Model E127 / E190

E127 / E190
Heavy Sliding Door

Dual-frame-width platform offering 127mm and 190mm profile options for mid-range and large-span residential and commercial openings. Push-and-pull operation with EZZO carriage hardware.

Profile Alloy6063-T5 Aluminium
Wall Thickness4.0 mm
Frame Width127 mm / 190 mm
Glass Config5 mm + 20A + 5 mm Tempered Insulated
Thermal BreakPA66 Nylon
HardwareEZZO Precision System
Track OptionsHigh Track with Water Barrier / Low Track
Screen0.45 HD Screen / Folding Screen
ShadingGlass Blinds / Windproof Roller Blinds
Opening ModePush-and-Pull
Glass OptionsLOW-E / Coated / Smart / Tinted
4.0mm Heavy Wall Precision Carriage System PA66 Thermal Break Water Barrier Track Dual Frame Width

Distinctive Features

Water Barrier Track

High Track option specifically blocks Singapore monsoon rain infiltration at the sill.

0.45 HD Screen Mesh

Finer than industry-standard mesh — blocks tropical insects while keeping views crystal clear.

Dual Track Choice

Choose High Track with water barrier or Low Track for fully barrier-free passage.

The E-series platform is EZZO's mid-to-large residential sliding door, delivering a thermally broken 4.0mm-wall aluminium profile available in two frame widths. The 20mm argon-gap insulated glass unit reduces heat transfer, while the EZZO carriage system ensures smooth, reliable operation on both high-track (water-draining) and low-track configurations.

Model TY120

TY120
Sliding Door

Variable-wall construction with a reinforced hook rail for panels up to 4 metres in height. Diamond mesh or folding gauze screen options provide ventilation without compromising the clean sightline.

Profile Alloy6063-T5 Aluminium
Frame Wall2.0 mm
Door Panel Wall2.0 – 4.0 mm
Hook Rail Wall3.0 – 6.0 mm
Frame Width120 mm
Maximum Height4,000 mm (4 m)
Glass Config5 mm + 20A + 5 mm Tempered Insulated
Thermal BreakPA66 Nylon
HardwareEZZO Precision System
ScreenDiamond Mesh / Folding Gauze
ShadingGlass Blinds / Windproof Roller Blinds
Glass OptionsLOW-E / Coated / Smart / Tinted
Max 4m Height Diamond Mesh Screen Reinforced Hook Rail Variable Panel Wall EZZO Hardware

Distinctive Features

Three-Tier Profile

Frame 2.0mm, panel 2.0–4.0mm tapered, hook rail 3.0–6.0mm reinforced — each zone engineered for its load.

Diamond Mesh Screen

Tighter diamond weave resists monsoon wind pressure while delivering full insect protection.

Integrated Shading

Glass Blinds or Windproof Roller Blinds build directly into the frame — no external fittings required.

The TY120 uses a tiered wall-thickness strategy: a 2.0mm main frame keeps weight down while the door panel steps up to 2.0–4.0mm and the hook rail reaches 3.0–6.0mm for rigidity at tall heights. This engineering approach allows panel heights up to 4m without sacrificing thermal performance or operational smoothness.

Model TY150 — Flagship

TY150
Heavy Sliding Door

EZZO's largest sliding door platform, engineered for commercial lobbies, resort-style residential openings, and full-height glazed façades. At 5.0mm wall thickness with a 27mm argon cavity and 150mm frame, it stands as the most structurally robust door in the range.

Profile Alloy6063-T5 Aluminium
Wall Thickness5.0 mm
Frame Width150 mm
Maximum Height7,000 mm (7 m)
Glass Config5 mm + 27A + 5 mm Tempered Insulated
Thermal BreakPA66 Nylon
HardwareEZZO Precision System
ScreenDiamond Mesh / Folding Gauze
ShadingGlass Blinds / Windproof Shutter
Glass OptionsLOW-E / Coated / Smart / Tinted
Max 7m Height 5.0mm Thick Wall 27A Wide Argon Cavity Windproof Shutter Commercial Grade

Distinctive Features

7m Maximum Height

Largest residential sliding door in the range — handles double-volume living rooms with ease.

5.0mm Profile Wall

Heaviest profile wall in the sliding range delivers structural rigidity across large spans.

Windproof Shutter

Unique integrated shutter protects against typhoon-strength winds — exclusive to the TY150.

27mm Argon Cavity

Wider air gap than the TY120's 20 mm — designed to improve acoustic and thermal insulation; achieved performance depends on glass build-up and installation detailing.

The widened 27 mm argon cavity in the TY150's insulated glass unit is intended to improve thermal and acoustic performance relative to a standard 20 mm gap; achieved values depend on glass build-up and installation detailing. Combined with a 5.0 mm profile wall — the thickest in EZZO's sliding door range — this model is suited to panels up to 7 m in height, subject to wind-load calculation and supplier confirmation, making it appropriate for open-plan living areas with double-height voids or full-width garden walls.

Folding Doors

Concertina Systems, Uninterrupted Views

Three folding door platforms — from the 65 mm heavy type to the 80 mm commercial-grade anti-pinch system — all specified with KERSSENBERG hardware and PA66 thermal break profiles. Used to open a room entirely to the outside or to subdivide an internal space.

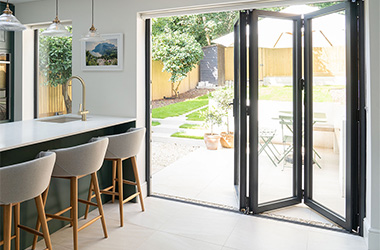

Premium bifold door system shown fully opened, demonstrating concertina operation and slim profile
Project Reference

Bi-fold & Concertina Systems

EZZO's folding door range adopts the proven EZZO bi-fold platform, engineered for smooth stacking, anti-pinch safety, and large-span openings. KERSSENBERG German hardware ensures decades of precise operation under Singapore's humidity and heat cycles.

Image: Bi-fold door reference installation — EZZO

Technical Drawings
Folding Door Cross-Sections — 65, 68KSBG & 80KSBG
Technical cross-section drawings for 65, 68KSBG and 80KSBG folding door models showing profile dimensions, single-fan maximum dimensions, and anti-pinch features

Cross-section drawings for the three folding door platforms. The 65 series handles compact residential openings; the 68KSBG (max single fan W850×H3600mm) and 80KSBG (max single fan W900×H4800mm) feature anti-pinch profiles for commercial-grade durability.

65 Series

65 Heavy Type
Folding Door

Entry-level heavy folding door with KERSSENBERG hardware, suitable for internal-to-external residential transitions.

Profile Alloy6063-T5 Aluminium
Wall Thickness2.0 mm
Frame Width65 mm
Glass Config5 mm + 20A + 5 mm Tempered
Thermal BreakPA66 Nylon
HardwareKERSSENBERG
Opening ModePush-and-Pull
KERSSENBERG Hardware PA66 Thermal Break 20A Insulated Glass

Distinctive Features

KERSSENBERG German Hardware

Swing Lock, Lock Cylinder, Automatic Bolt, and Sword-Type Lock — complete German hardware system.

Single Hinge Precision

German-engineered hinge mechanism sustains decades of smooth folding operation under Singapore's climate.

Top Guide & Hanger Wheel System

Dual-wheel travel system ensures smooth panel movement even under heavy glass loads.

68KSBG Series

68KSBG Anti-Pinch
Heavy Duty Folding

Anti-pinch safety design for households with children or commercial applications with high foot traffic. Narrower 68mm profile maximises glass area per panel.

Profile Alloy6063-T5 Aluminium
Wall Thickness2.0 mm
Frame Width68 mm
Max Width / Leaf850 mm
Max Height3,600 mm (3.6 m)
Glass Config5 mm + 20A + 5 mm Tempered
Thermal BreakPA66 Nylon
HardwareKERSSENBERG
SafetyAnti-pinch design
Anti-Pinch Safety Max 850mm/Leaf Max H 3.6m KERSSENBERG

Distinctive Features

Pinch-Free Design

Industry-grade anti-pinch safety profile makes this door the ideal choice for family homes with children.

W850 × H3600mm Panels

Large single-fan maximum dimensions handle substantial residential and commercial openings confidently.

3+1 Bottom Wheels

Four-wheel load distribution supports heavy glass panels and reduces track wear over time.

Stain-Resistant Surface Treatment

Surface finish designed to resist marks and simplify long-term cleaning and maintenance.

80KSBG Series — Tall Format

80KSBG Anti-Pinch
Heavy Duty Folding

The tallest folding door in EZZO's range — reaching 4.8 metres in height with a widened 27mm argon cavity glass unit and 0.45 HD screen option. Designed for double-height spaces and commercial-scale openings.

Profile Alloy6063-T5 Aluminium
Wall Thickness2.0 mm
Frame Width80 mm
Max Width / Leaf900 mm
Max Height4,800 mm (4.8 m)
Glass Config5 mm + 27A + 5 mm Tempered
Thermal BreakPA66 Nylon
HardwareKERSSENBERG
Screen0.45 HD Screen / Folding Screen
SafetyAnti-pinch design
Max 4.8m Height 27A Argon Glass Anti-Pinch Safety Max 900mm/Leaf HD Screen Option

Distinctive Features

W900 × H4800mm Maximum

Largest folding panel in EZZO's range — built for grand double-height and commercial-scale openings.

27mm Argon Cavity Glass

Widest IGU cavity in the EZZO folding door range — specified where higher acoustic and thermal performance is required by the consultant brief.

2+0 Hanger Wheel System

Precision upper guide delivers silent panel travel and consistent alignment over the full height.

Double-Side Handle Lock

Optional security upgrade adds keyed access from both sides for external installation use.

Flat Doors

Clean-Profile Outdoor Doors

Three distinct flat door types for outdoor and commercial use — a weatherproof outdoor swing door, a louvred aluminium shutter door for ventilation without glass, and a floor-spring pivot glass door for high-traffic entrances.

120 Outdoor Flat Door

Full-width 120mm profile flat swing door engineered for outdoor installation. Deep frame provides weatherproofing and structural rigidity for exposed façade positions.

120mm Profile Outdoor Rated 6063-T5 Alloy

Aluminium Shutter / Louvre Door

Fixed or adjustable aluminium louvre slats deliver natural cross-ventilation and privacy. Ideal for utility rooms, planters, and service courtyards where air circulation is prioritised over transparency.

Louvre Ventilation Privacy Screen Service Courtyard

Outdoor Spring Door
(Floor Spring Glass Door)

Frameless-look pivot glass door with a concealed floor-spring mechanism for controlled, self-closing operation. Suited to commercial entrances, lobby partitions, and feature thresholds requiring ADA-compliant swing force.

Floor Spring Pivot Self-Closing Commercial Grade

PT Doors

Dual-Track Versatility

The 65×33 PT door combines sliding and swinging functions on dual or triple track systems — providing screen door functionality with the flexibility of hinged operation when needed.

65×33 PT Series

65×33 PT Door

A uniquely versatile platform combining sliding screen and swing door functions on a shared dual or triple track. Diamond mesh screen provides full mosquito and insect protection while maintaining airflow. The hinge hardware enables the same panel to swing open independently, simplifying everyday access.

Profile Alloy6063-T5 Aluminium
Profile Wall1.6 mm
Hook Profile Width65 mm
Sash Profile Width33 mm
ScreenDiamond Mesh
Track ConfigurationDual-Track / Triple-Track
Opening ModesSwing / Slide
HardwareDouble-Track, Triple-Track, Triple Synchronisation, Hinge
Dual-Track System Triple-Track Option Swing + Slide Diamond Mesh Screen Triple Synchronisation

Distinctive Features

Dual AND Triple-Track

Most versatile track configuration in the PT range — adapts to any room layout requirement.

Diamond Mesh Screen

Integrated insect protection built into the door — no separate screen frame needed.

Swing OR Slide Operation

Adapts to user need in real time — unique dual-mode operation exclusive to the PT series.

1.6mm Reinforced Profile

Heaviest wall in the PT range — engineered for exterior installations and larger openings.

The triple synchronisation hardware option allows multiple PT door panels to move in unison — useful for wide openings where a single screen panel would be impractical. The 1.6 mm lightweight wall profile reduces panel weight to keep operating force low, while the 65 mm hook rail provides the structural depth needed for secure track engagement.

Interior System Doors — 08 Series

Refined Interior Glazing

The 08 series brings system door precision to internal spaces — slim-frame sliding and flat panels, French door configurations, and central shaft pivot systems for walk-in wardrobes, studies, and internal living partitions.

08 Single Glazing
Sliding Door

Slim 08-series sliding interior door with single tempered glass panel. Clean linear frame profile blends with minimalist interiors. Suitable for bedroom, study, and home office divisions.

Single Glaze 08 Series Interior

Distinctive Features

8mm Tempered Insulated Glass

Thicker than standard interior panels — delivers enhanced acoustic separation between living spaces.

6063-T5 Ultra High Precision Alloy

Precision-grade 6063-T5 extrusion delivers tight dimensional tolerances and a consistent surface finish.

Three Rail Configurations

Two-Rail Two-Panel, Two-Rail Four-Panel, or Three-Rail Triple-Linked — one system, three layout solutions.

Premium Hanging System

Suspended track design eliminates the floor rail entirely for a seamless, clean floor plane.

08 Single Glazing
Flat Door

Interior flat swing door with single glazed 08-series frame. Frameless-look top rail and slim stiles maximise light transmission between adjacent interior spaces.

Flat Swing 08 Series Interior

French Door

Double-leaf French door with characteristic muntin grid glazing. Evokes classic European interior architecture while using modern aluminium system profiles. Ideal for living room–dining room transitions or master bedroom access to balconies.

Double Leaf Muntin Glazing Classic Profile

Central Shaft Door

A full-height glass panel pivoting on a central vertical shaft — an architectural statement piece for feature partitions, wardrobe entries, and home theatre screens. The central pivot creates a balanced, minimal appearance with no visible top-hung hardware.

Central Pivot Full-Height Glass Feature Partition

Standard Configuration

Shared Across All Door Systems

Every EZZO system door is built to a common specification baseline — ensuring consistent thermal performance, durability, and finish quality across the entire range.

Alloy & Profile

  • 6063-T5 Aluminium Alloy
  • Robot-precision extrusion
  • Electrostatic powder coating
  • 11 standard colour options
  • Custom RAL on request

Thermal Break

  • PA66 Nylon thermal break (all models)
  • Eliminates cold bridging at frame
  • Reduces condensation risk
  • Improves acoustic attenuation

Glass Options

  • LOW-E coated (solar control)
  • Coated glass (privacy + UV)
  • Smart glass (electrically switchable)
  • Tinted glass (5 tint grades)
  • Dimming glass (electric / temp / light / pressure)
  • Amberina art glass
  • Bulletproof glass (on request)

Screen Options

  • Fixed fly screen
  • Sliding fly screen
  • Rolling retractable screen
  • Folding gauze screen
  • Diamond mesh (SS 302 / fibreglass)
  • 0.45 HD fine mesh

Shading

  • Glass blinds (integrated IGU)
  • Windproof roller blinds
  • Windproof shutter (TY150)

Hardware

  • EZZO Precision System (sliding doors)
  • KERSSENBERG (folding doors)
  • Multi-point locking
  • Floor spring (flat glass doors)
  • Triple-synchronisation (PT series)

11 Standard Colours

Metallic Grey
Deep Skin
Metallic Coffee
Fair Skin
Chocolate Brown
Signal Brown
Ruby Red
Melanite
Moss Grey
Ivory
Pastel Blue

Model Comparison

Heavy Sliding Doors Side by Side

Select the right heavy sliding door for your opening size, wall thickness requirement, and glazing specification.

Specification E127 E190 TY120 TY150
Wall Thickness 4.0 mm 4.0 mm 2.0–4.0 mm
(tiered)		 5.0 mm
Frame Width 127 mm 190 mm 120 mm 150 mm
Max Door Height — — 4,000 mm 7,000 mm
Glass Config 5+20A+5 mm 5+20A+5 mm 5+20A+5 mm 5+27A+5 mm
Argon Cavity 20 mm 20 mm 20 mm 27 mm
Thermal Break PA66 ✓ PA66 ✓ PA66 ✓ PA66 ✓
Hardware EZZO Precision System EZZO Precision System EZZO Precision System EZZO Precision System
Shading Option Roller Blinds Roller Blinds Roller Blinds Windproof Shutter
Screen 0.45 HD / Folding 0.45 HD / Folding Diamond Mesh Diamond Mesh
Track Options High / Low High / Low Standard Standard
Best For Mid-span
residential		 Wide-span
openings		 Tall panels
up to 4m		 Grand openings
up to 7m

All models: 6063-T5 aluminium alloy, PA66 nylon thermal break, LOW-E / coated / smart / tinted glass options, 11 standard RAL colour finishes. Contact EZZO for custom sizing, commercial quantities, and specialist glass specifications.

6063-T5 Aluminium Alloy  ·  PA66 Nylon Thermal Break  ·  KERSSENBERG Hardware  ·  LOW-E, Coated, Smart & Tinted Glass  ·  11 Standard Colours

EZZO.SG Singapore

Ready to Specify Your Door System?

Our experienced installation team is available to advise on the right door system for your project — residential or commercial, new build or renovation.

Request a Quote Call Us admin@ezzogenics.com

Blk 15 Kaki Bukit Rd 4, #01-44, Bartley Biz Centre, Singapore 417808
